YMTC’s 294-Layer 3D NAND: The Domestic NAND Capacity Milestone

YMTC’s progress in three-dimensional NAND is important for more than the layer-count contest. It represents an effort to convert domestic semiconductor engineering into usable storage supply: chips that can enter qualified products, support customer deployments, and generate repeatable manufacturing output.

The headline requires one technical distinction. Analysis of YMTC’s fifth-generation TLC NAND identified 294 total layers, of which 232 were active memory layers. Those figures should not be treated as interchangeable, particularly when comparing products advertised by their active-layer count. The same analysis described Xtacking 4.0 and a reported bit density near 19.8 gigabits per square millimeter.

The central theme is commercialization. A sophisticated NAND structure is a milestone, but its economic significance depends on yield, production scale, controllers, firmware, and customer qualification. That is where domestic capability becomes domestic capacity.

What the 294-Layer Description Actually Measures

Three-dimensional NAND arranges memory cells vertically, allowing manufacturers to increase storage density within a given footprint. However, not every physical layer performs the same function.

Active layers participate in storing data. A total-layer description can include additional structures needed to build and operate the device.

This makes comparisons more complicated than placing two advertised numbers side by side. A product with a higher stated layer count does not necessarily have proportionately more usable storage.

For analysts, the relevant comparison includes active layers, die capacity, area, cell format, and architecture. Layer count is informative, but it is not a complete ranking of technology quality or manufacturing economics.

Xtacking Changes the Architecture Behind the Number

YMTC’s Xtacking approach separates fabrication of the memory array and peripheral circuitry before joining them. That gives the company another density and design lever beyond increasing vertical layers.

The architecture can allow the two structures to be developed around different requirements. It also adds integration demands: the joining process must be precise and reliable.

For a manufacturing engineer, the question is whether the combined structure performs consistently at commercial yields. For a customer, it is whether the resulting NAND supports an acceptable storage product.

The architectural distinction therefore matters more than the slogan. It helps explain why two products with similar layer counts can have different densities, interface behavior, and cost structures.

Density Is Not the Same as Cost per Saleable Bit

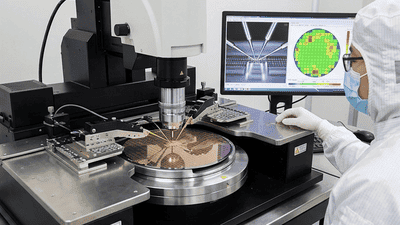

A higher-density die can improve potential output from a wafer. But potential density becomes economically useful only when the manufacturer produces enough accepted devices.

Processing complexity, defects, bonding yield, testing, and capital costs all influence the result. A denser design can still be expensive if manufacturing remains difficult.

That is why an impressive teardown does not establish the complete cost curve. It reveals structural capability, not necessarily the economics of every production lot.

For investors, the stronger evidence would include stable output, improving yields, and recurring customer adoption. Those indicators connect engineering progress with revenue-generating supply.

The Milestone Was Already Visible Before 2026

Reporting on the 294-total-layer fifth-generation device appeared in January 2025. It should therefore not be presented as a newly announced October 2026 technology breakthrough.

The 2026 question is how that platform and subsequent developments contribute to product availability, customer acceptance, and manufacturing expansion.

This distinction changes the emphasis from discovery to execution. A technology identified in shipping devices can continue to become more commercially important as its production improves.

For an analyst, chronology helps separate the original technical milestone from later claims about capacity or market share. Each claim needs its own measurement basis rather than borrowing credibility from the earlier announcement.

Different Products Can Sit Within One Generation

A technology-generation label does not always identify one unique die configuration. TLC and QLC products can use related architectural foundations while differing in capacity, interface behavior, and application.

TLC stores three bits per cell; QLC stores four. Increasing bits per cell offers a density opportunity but changes the requirements for programming, reading, and managing the media.

A commercial fifth-generation QLC product should not automatically be assigned every specification reported for a fifth-generation TLC die.

For buyers, the relevant unit is the exact component or finished product. For analysts, distinguishing variants prevents a headline layer count from becoming an inaccurate description of an entire portfolio.

Domestic Capacity Has Several Definitions

A NAND company can increase wafer starts, installed equipment, bit output, or qualified shipments. Those measures describe different stages of production.

Wafer starts indicate activity entering the process. Accepted dies reflect the outcome of manufacturing and testing. Qualified shipments show what can reach customers under the required specifications.

A denser architecture can increase bit output without an equivalent increase in wafer starts. Conversely, more wafers can produce less useful supply than expected if yields are weak.

The domestic-capacity milestone should therefore be evaluated through saleable output, not just factory size. A completed facility is an investment asset; qualified NAND is the material customers can use.

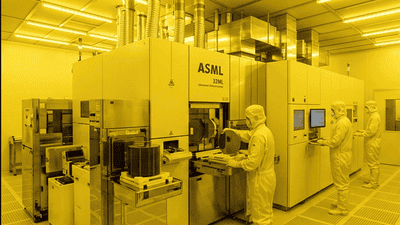

Expansion Plans Need a Ramp Timeline

Public reporting has described additional YMTC manufacturing development in Wuhan and plans for higher-layer products. Such plans signal intended growth, but they should not be treated as completed output or verified market-share gains.

New facilities require equipment installation, process qualification, staffing, and yield improvement before reaching their intended contribution.

The dates for initial production and commercially meaningful output can differ substantially.

For buyers, the relevant question is when approved products become reliably available. For investors, it is when expansion generates returns after accounting for investment and operating costs. The same construction announcement answers neither question by itself.

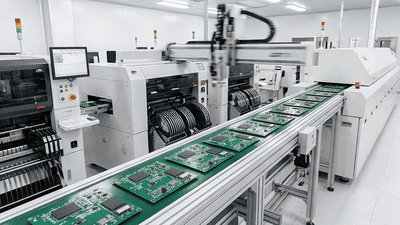

Client SSDs Can Provide a Commercial Entry Point

Client storage gives a NAND producer a route into finished products with visible capacity and performance specifications. It also creates operating feedback beyond the semiconductor component.

The SSD still needs a controller, firmware, and suitable validation. A fast interface or dense NAND does not independently determine the user experience.

Performance under sustained activity, thermal behavior, and reliability can matter differently from a short sequential benchmark.

For YMTC, successful client products can support volume and application experience. They should not be treated as automatic proof that the same platform meets every enterprise requirement.

Enterprise Storage Raises the Qualification Standard

Enterprise SSD buyers evaluate complete products in defined operating environments. Endurance, latency consistency, power-loss behavior, error management, and serviceability can influence approval.

Qualification can take time because customers need confidence in both normal operation and less favorable conditions.

This means a domestically produced NAND die is only one part of a domestic enterprise-storage proposition. Controllers, firmware, testing, support, and integration remain essential.

From a procurement manager’s perspective, the question is whether the drive can support the workload reliably. From an investor’s perspective, enterprise participation becomes more convincing when evaluations turn into repeat deployments.

Domestic NAND Does Not Mean a Fully Domestic SSD

A finished storage product can combine a domestic NAND component with internationally sourced controllers, firmware tools, or other inputs.

That does not negate the value of local flash manufacturing. It does limit claims of complete supply-chain independence.

The appropriate assessment follows the actual product: which components are local, which are qualified, and which dependencies could interrupt manufacturing or support?

For customers seeking resilience, a transparent mixed supply chain can be more useful than a broad localization label. The objective is dependable availability, not simply satisfying a geographical description.

The DDR5 Connection Is Complementary

YMTC’s NAND milestone is not a DDR5 manufacturing milestone. NAND provides nonvolatile storage, while DDR5 DRAM supplies working memory in many server and client platforms.

The technologies meet different requirements and are not interchangeable.

The commercial connection comes through the systems using both. A server can need DDR5 capacity and enterprise SSD storage; a PC can combine conventional memory with a NAND-based drive.

For analysts, the demand forecasts should remain separate. Progress in domestic NAND can broaden local system sourcing without establishing equivalent progress in DRAM supply.

More Affordable Storage Can Change System Choices

If qualified NAND becomes more competitive, system manufacturers may have greater flexibility to offer additional capacity or improve product economics.

However, lower component costs do not necessarily translate into an immediate retail discount. Pricing also reflects market demand, channel inventory, and the value of the complete product.

Enterprise buyers can similarly choose to capture the benefit through larger capacity, different configurations, or lower acquisition cost.

For a memory analyst, the useful question is where the efficiency gain appears. It may support manufacturer margins, customer value, or both. A density improvement alone cannot establish the final allocation.

Global Market Impact Depends on Reachable Customers

Additional output matters most when it can reach customers who are able and willing to use it. Technical compatibility, qualification, commercial relationships, and regulatory conditions influence that reach.

A producer can expand domestically while having a different competitive position internationally.

This makes a global supply forecast more complicated than adding announced wafer capacity. The calculation needs to account for accepted output and the markets where it can be deployed.

For investors following established NAND suppliers, the relevant issue is application-level competition. YMTC’s progress may be more consequential in some channels than others rather than uniformly changing the entire market.

Export Restrictions Do Not Establish Technical Failure

Restrictions affecting equipment or customer access can complicate development and commercialization. They do not, by themselves, prove that a technology cannot operate successfully.

Equally, a working device does not establish independence from every international manufacturing dependency.

The correct analysis keeps technical capability, supply-chain resilience, and legal market access separate.

For a customer considering a transaction, current requirements need qualified review. For an analyst, regulatory uncertainty belongs in the commercialization model without replacing the engineering evidence.

Inventory and Pricing Will Reveal the Commercial Balance

A capacity milestone does not guarantee immediate oversupply. Customer demand, product mix, and the pace of qualification determine how much new output the market can absorb.

Conversely, strong current pricing does not guarantee that additional production will remain equally profitable.

Tracking inventories alongside shipments helps identify whether output is entering customer use or accumulating somewhere in the chain.

Price comparisons need consistent products. A client-drive promotion, raw NAND quotation, and enterprise SSD contract describe different transactions and cannot be substituted for one another.

What to Watch Beyond the Layer Count

The most informative indicators connect structural progress with dependable supply.

• Distinguish total layers from active memory layers.
• Identify the exact TLC or QLC product being discussed.
• Track qualified output rather than nominal installed capacity.
• Look for stable manufacturing and repeat customer purchases.
• Evaluate controllers and firmware in finished SSD products.
• Separate domestic deployment from global market assumptions.
• Monitor product-level pricing, inventories, and support capability.

These measures make the milestone useful for market analysis without turning incomplete disclosures into precise forecasts.

The Domestic Milestone Is a Production Test

YMTC’s reported 294-total-layer NAND, including 232 active memory layers, demonstrated meaningful architectural progress. Xtacking adds another reason to evaluate the technology beyond a simple vertical-stack comparison.

The next test is commercial: accepted output, qualified products, dependable delivery, and repeat deployment across appropriate applications.

DDR5 remains a separate working-memory story, while enterprise storage adds requirements beyond the NAND die. The durable achievement will be converting domestic flash engineering into storage that customers can trust—and manufacturing it economically enough to supply again.
